| Bolted Mechanical fittings, Standard® |
|
|
|
 |
| Type: |
Bolted Mechanical fittings, Standard® |
| Name: |

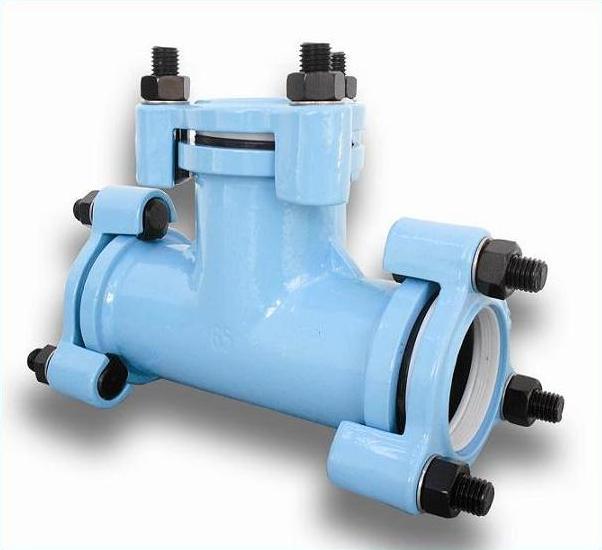

Tee, Standard® Series |
|
|
|
|

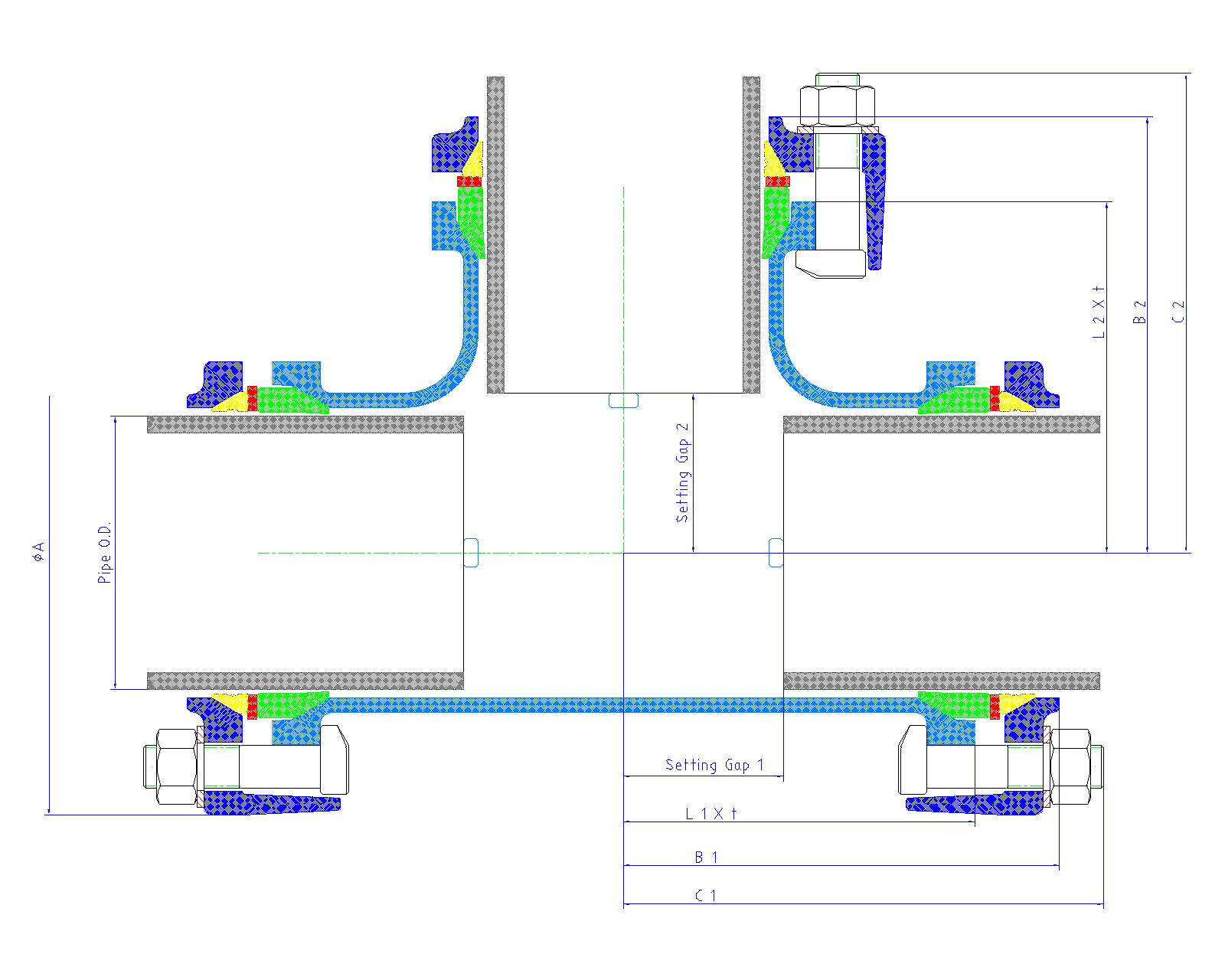

Tee Plain End to Plain End  Main Dimensions: Unit:mm | Size | Pipe O.D. | Coupling Overall | Body | Bolts | | SGP-PD﹡ | HIVP﹡﹡ | A | B1 | B2 | C1 | C2 | L1 | L2 | t | n- M x L | | 50X50 | 64.5 | 60 | 142 | 122 | 122 | 139 | 139 | 102 | 102 | 4 | 3-M14x60 | | 65X65 | 80.3 | 76 | 168 | 142 | 147 | 165 | 170 | 115 | 120 | 4.5 | 3-M18x76 | | 80X80 | 93.1 | 89 | 182 | 154 | 154 | 170 | 170 | 123 | 123 | 5 | 3-M18x76 | | 100X100 | 118.3 | 114 | 219 | 186 | 186 | 191 | 191 | 147 | 147 | 6 | 3-M18x76 | | Size | Setting Gap1 | Setting Gap2 | Weight | | Min | Max | Min | Max | Kg | | 50X50 | 42 | 77 | 42 | 77 | 6.6 | | 65X65 | 55 | 85 | 55 | 90 | 8.1 | | 80X80 | 54 | 89 | 54 | 89 | 9.9 | | 100X100 | 67 | 108 | 67 | 108 | 15.7 |
* JWWA K 132: Polyethylene Powder-Coated Steel Pipe for Water Supply.
** JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.
|
|
|
