| Bolted Mechanical fittings, Standard® |
|
|
|
 |
| Type: |
Bolted Mechanical fittings, Standard® |
| Name: |

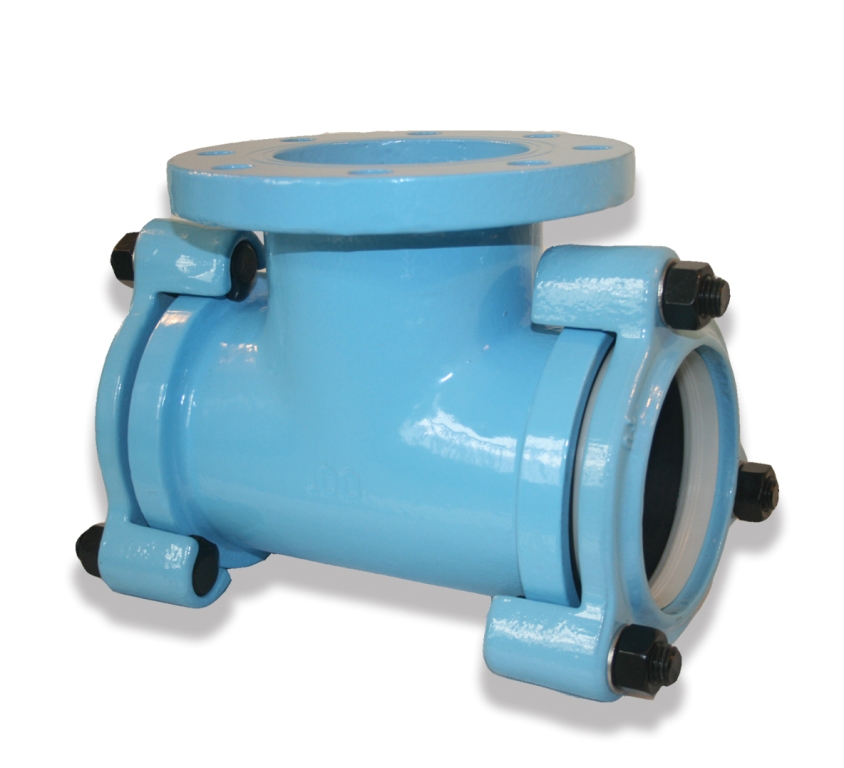

Flange Tee, Standard® Series |
|
|
|
|

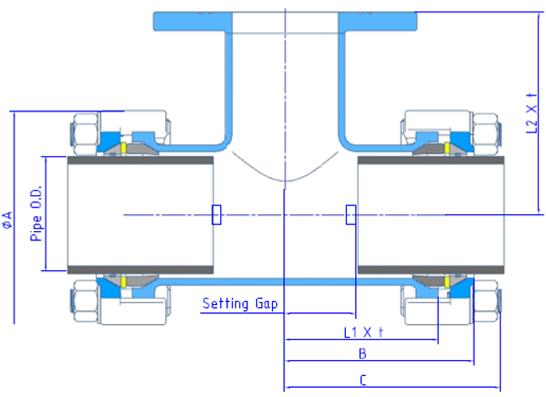

Flanged Tee Plain End to Flange  Main Dimensions: Unit:mm | Size | Pipe O.D. | Coupling Overall | Body | Setting Gap | Weight | | SGP-PD﹡ | HIVP﹡﹡ | A | B | C | L1 | L2 | t | Min | Max | Kg | | 80X50F | 93.1 | 89 | 182 | 117 | 132 | 85 | 150 | 5 | 41 | 51 | 8.6 | | 80X80F | 93.1 | 89 | 182 | 124 | 139 | 92 | 153 | 5 | 48 | 58 | 10.1 | | 80X100F | 93.1 | 89 | 182 | 141 | 156 | 109 | 155 | 5 | 65 | 75 | 12.3 | | 100X50F | 118.3 | 114 | 219 | 134 | 139 | 95 | 180 | 6 | 40 | 56 | 11.9 | | 100X80F | 118.3 | 114 | 219 | 147 | 152 | 108 | 181 | 6 | 53 | 69 | 14.6 | | 100X100F | 118.3 | 114 | 219 | 155 | 160 | 116 | 185 | 6 | 61 | 77 | 16.1 | | Size | Bolts | | n- M x L | | 80X50F | 3-M18x76 | | 80X80F | 3-M18x76 | | 80X100F | 3-M18x76 | | 100X50F | 3-M18x76 | | 100X80F | 3-M18x76 | | 100X100F | 3-M18x76 |
* JWWA K 132: Polyethylene Powder-Coated Steel Pipe for Water Supply. ** JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe. When ordering, please notice flange Specification PN10/PN16 or JIS 10K
|
|
|
