Type: Bolted Mechanical fittings, Standard®
Name: Elbow, Standard® Series

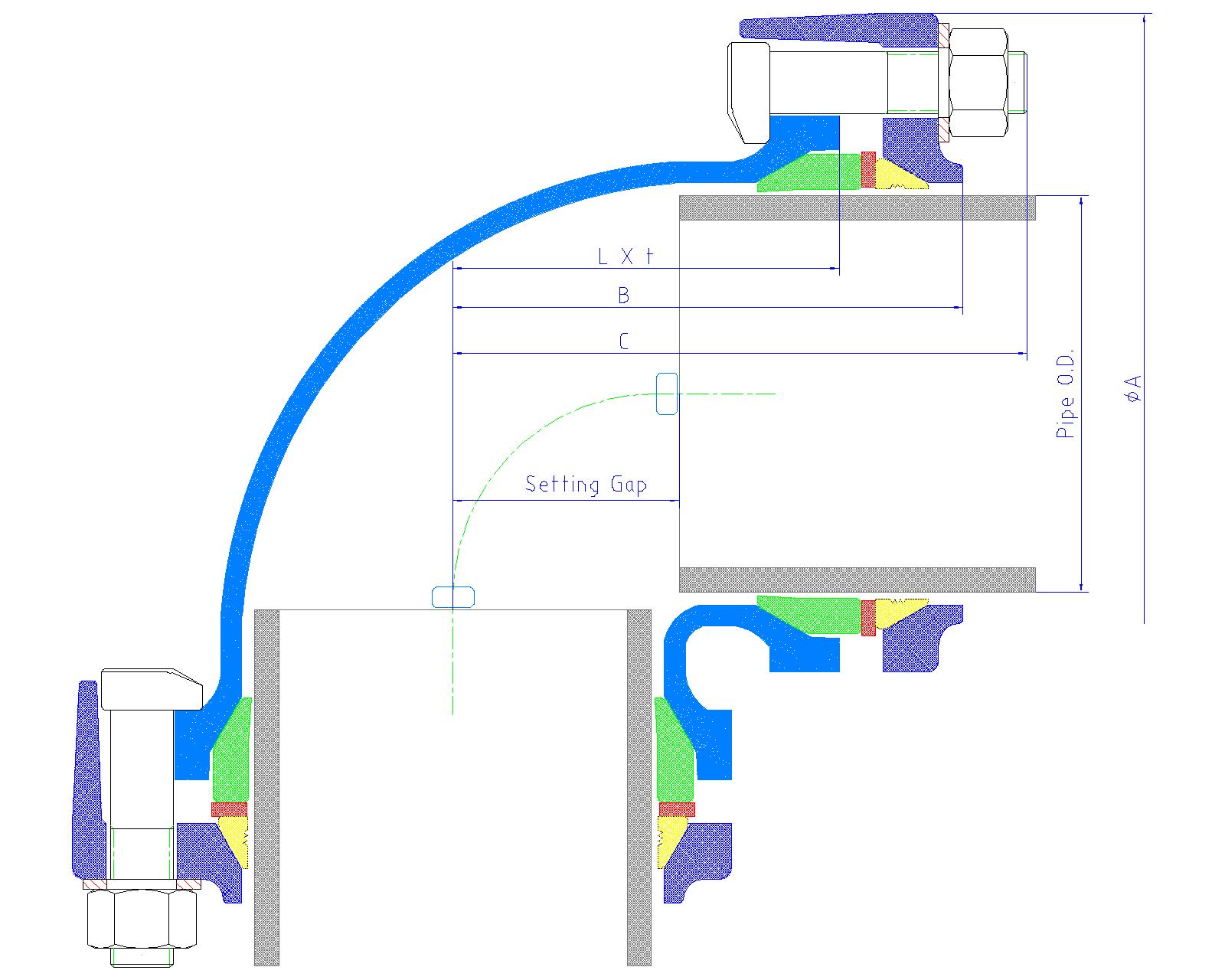

 Elbow                                                      Plain End to Plain End



Main Dimensions:                                                                                                      Unit:mm

Size Pipe O.D. Coupling Overall  Body Setting Gap Bolts Weight
SGP-PD HIVP﹡﹡ A B C L  t  Min Max n- M  x L Kg
50L 64.5 60 142 122 139 102 4 52 77 3-M14x60 4.4
65 80.3 76 168 102 125 75 4.5 42 45 3-M18x76 5.2
80 93.1 89 182 118 134 87 5 48 53 3-M18x76 6.0
80L 93.1 89 182 189 205 158 5 78 124 3-M18x76 7.8
100 118.3 114 219 150 155 111 6 61 72 3-M18x76 9.7
100L 118.3 114 219 221 226 182 6 92 143 3-M18x76 12.8


*   JWWA K 132:  Polyethylene Powder-Coated Steel Pipe for Water Supply.

**  JIS K 6742:  Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply  or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.
