Bolted Mechanical fittings, Standard®
Flange Adaptor, Standard® Series
Flange Adaptor, Standard® Series
Type: Bolted Mechanical fittings, Standard®
Name: Flange Adaptor, Standard® Series

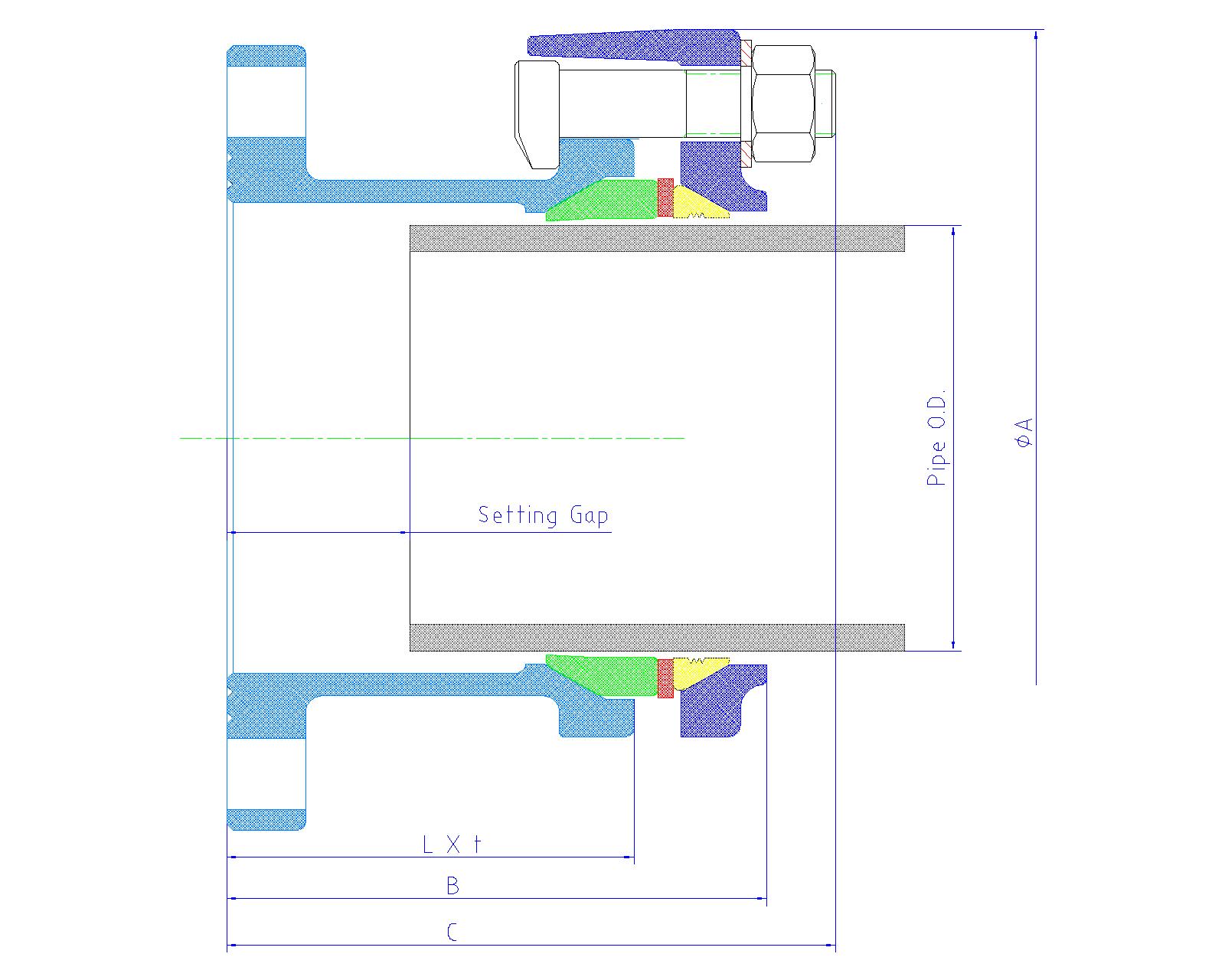

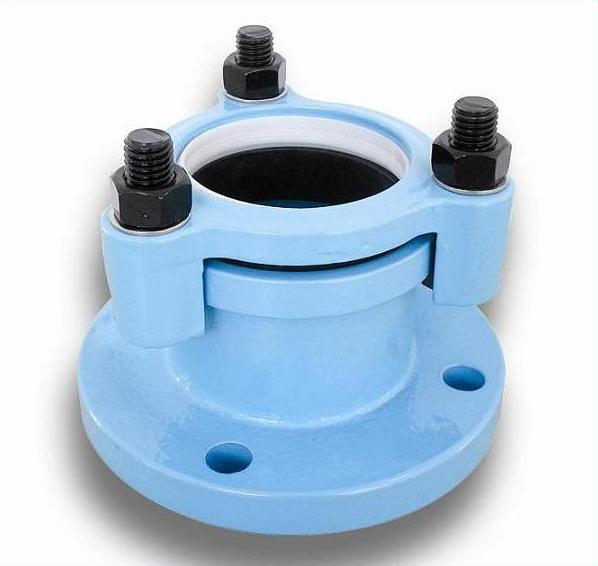

Flange Adaptor                                                                     Plain End to Flange


Main Dimensions:                                                                                                     Unit:mm

Size Pipe O.D. Coupling Overall  Body Setting Gap Bolts Weight
SGP-PD HIVP﹡﹡ A B C L   t   Min Max n- M  x L Kg
50X50F 64.5 60 142 110 127 90 4 7 65 3-M14x60 4.5
80X80F 93.1 89 182 126 142 95 5 10 60 3-M18x76 5.9
100X100F 118.3 114 219 148 153 109 6 12 66 3-M18x76 7.9

*   JWWA K 132:  Polyethylene Powder-Coated Steel Pipe for Water Supply.

**  JIS K 6742:  Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply  or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.

When ordering, please notice flange Specification PN10/PN16 or JIS 10K
