Cap, Standard® Series
Cap, Standard® Series

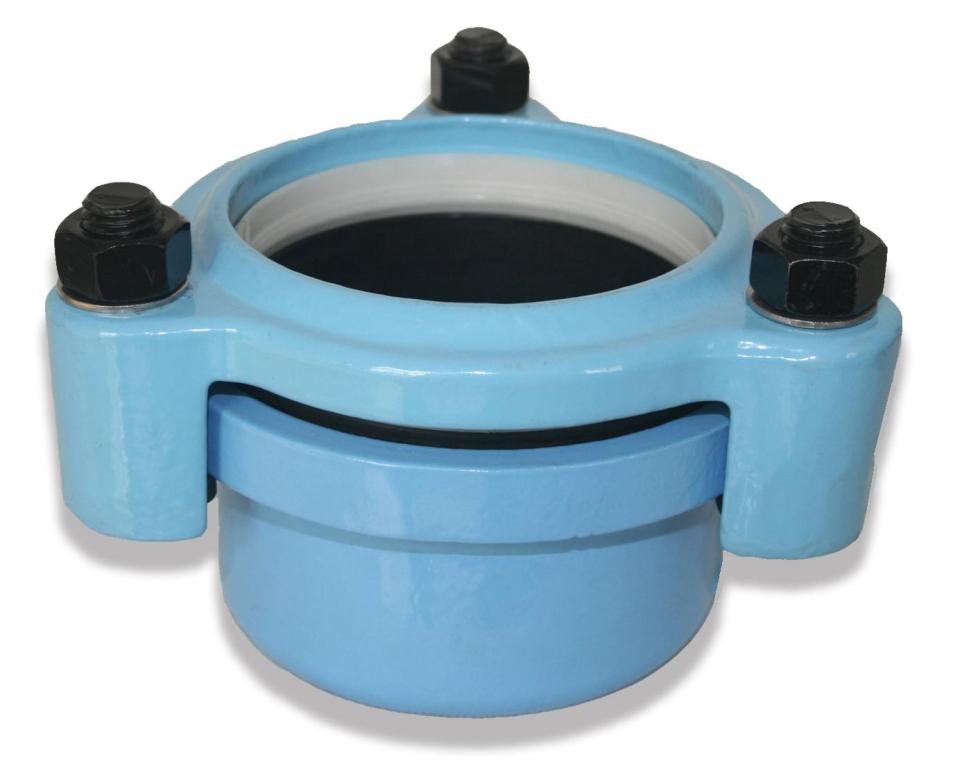

Name: Cap, Standard® Series

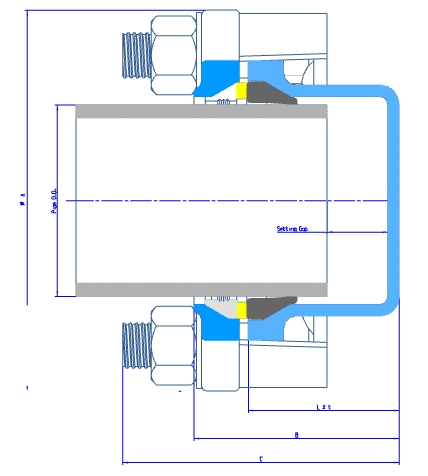

  Cap                                                                              Plain End to Pipe End

Main Dimensions:                                                                                                      Unit:mm

Size Pipe O.D. Fitting Overall  Body Setting Gap Bolts Weight
SGP-PD HIVP﹡﹡ A B C  L  t Min Max n- M  x L Kg
65 80.3 76 168 87 110 60 4.5 8 26 3-M18x76 2.5
80 93.1 89 182 101 117 70 5 10 31 3-M18x76 3.2
100 118.3 114 219 119 124 80 6 12 35 3-M18x76 5.0

*   JWWA K 132:  Polyethylene Powder-Coated Steel Pipe for Water Supply.

**  JIS K 6742:  Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply  or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.
