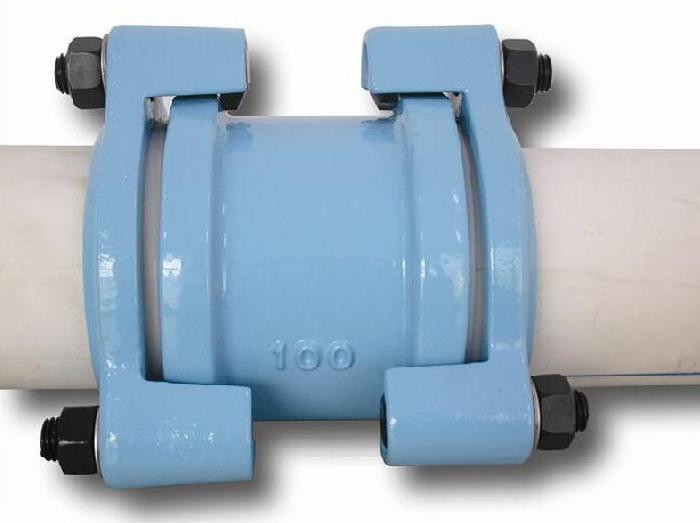

The Standard® Series of Bolted Mechanical Fittings are designed to suit specified outside diameter tailored to your particular needs.

Typical pipes connectable with Standard® Series Bolted Mechanical Fittings includes:

    Polyethylene Pipes for water Industry,

    Epoxy Ceated Steel Pipes for potable water,

    Stainless Steel Pipes,

    Galvanized Steel Pipes for water works,

    Carbon Steel Pipes for ordinary piping.

Available in sizes from DN50 to DN100 for all kinds of fittings including Couplings, Flange Adapters, Elbows, Tees, Flange Tees and Caps etc. supplying complete solutions for connection:

  -- Plain End to Plain End

  -- Plain End to Flange

  -- Plain End to Female PT Thread

with working pressure 1.0Mpa / 1.6Mpa for water and 0.4MPA for gas.

Features and Benefit:

■ Fast and easy piping work

   Bolted Mechanical Fittings are designed for a wide variety of plain-ended pipes connection, no more need on-site threading or welding, just push on the pipe and tighten the short T-bolts, the fittings will form an effective permanent leak tight joint.

   Piping work in narrow corners and in all weathers is possible now by using Bolted Mechanical Fittings .

■ Full protection and high reliability

   Inside and outside surfaces of the body and End Rings are Epoxy Powder Coated.

   The T-bolts and Nuts are Cathode Electrophoresis Coated, elastomeric gaskets and lock rings are made of the best materials available for the duty to supply high reliability.

   The Standard® Series of Bolted Mechanical Fittings made of ductile cast iron are designed to last the life of the pipeline in all weather conditions including cold region.

■ End Load Bearing

   The Standard® Series of Mechanical Fittings are designed with Lock Rings made of Acetal Copolymer to bear End Load according to Type 2 performance requirements of the UK Water Industry Specification WIS-24-01.

■ Setting Angularity allowed

   The Standard® Series of Bolted Mechanical Fittings are designed to allow upto 6° Setting Angularity.

   The joint flexibility make long curve pipeline connection possible without special bends and allows piping work on rough or uneven terrain even in condition of ground settlement.

 ■ Silent and safe fluid handling

    Gap at pipe ends and elatomeric gaskets can isolate and absorb noise and vibration caused by turbulent flow.

    Mechanical Fittings can be used as Unions to supply extra convenience when removing pipes for maitanance or retation of pipe section for cleaning or wear reduction.
