| Bolted Mechanical fittings, Standard® |
|
|
|
 |
| Type: |
Bolted Mechanical fittings, Standard® |
| Name: |

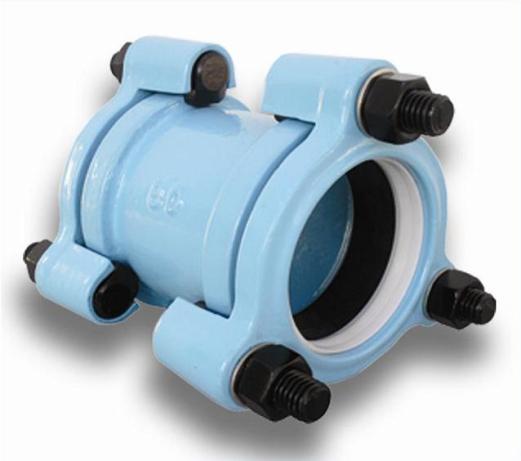

Coupling, Standard® Series |
|
|
|
|

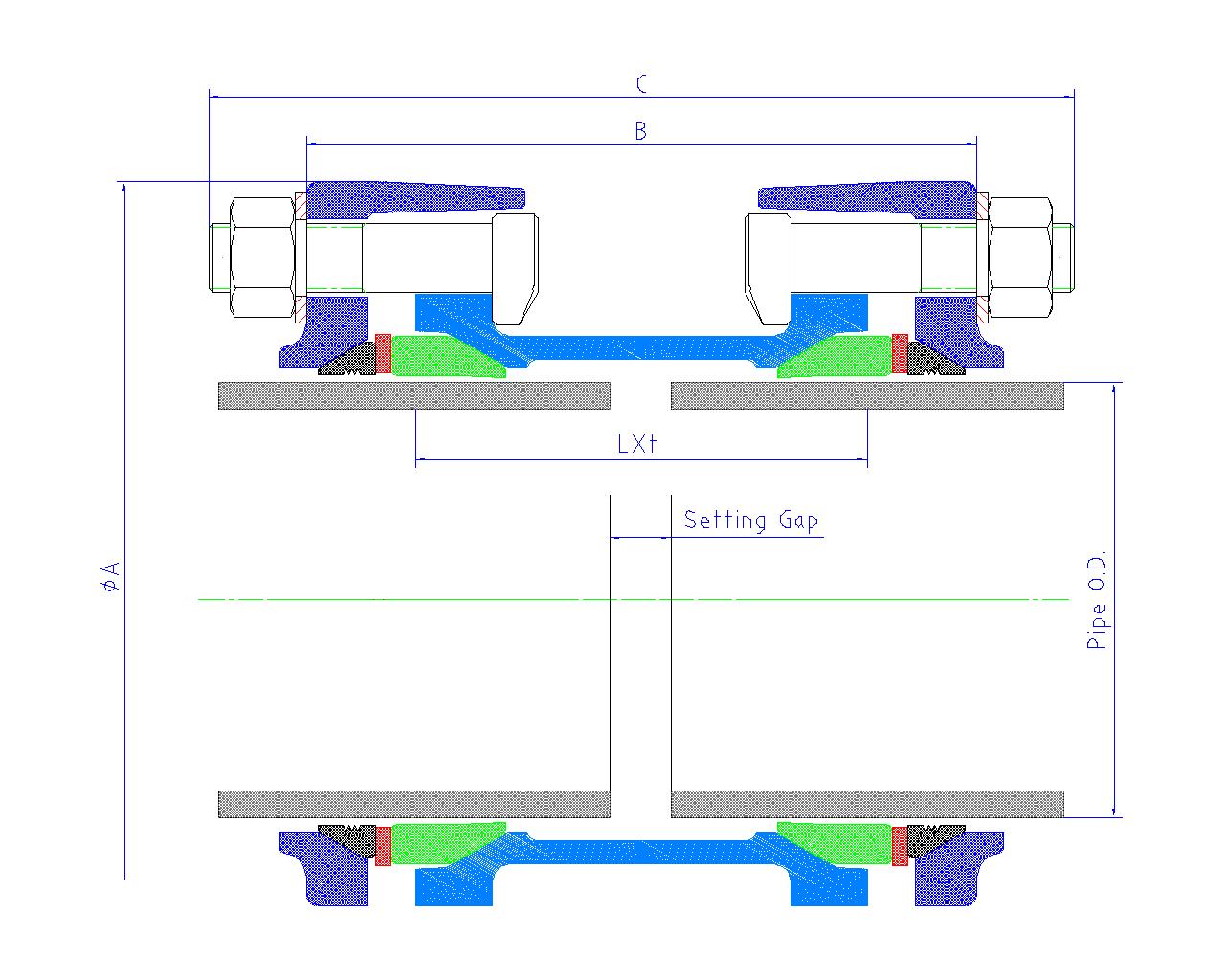

Coupling Plain End to Plain End  Main Dimensions: Unit:mm | Size | Pipe O.D. | Coupling Overall | Body | Setting Gap | Bolts | Weight | | SGP-PD﹡ | HIVP﹡﹡ | A | B | C | L | t | Min | Max | n- M x L | Kg | | 50L | 64.5 | 60 | 142 | 150 | 186 | 110 | 4 | 7 | 52 | 3-M14x60 | 3.9 | | 65 | 80.3 | 76 | 168 | 145 | 190 | 90 | 4.5 | 8 | 22 | 3-M18x76 | 4.4 | | 80 | 93.1 | 89 | 182 | 172 | 204 | 110 | 5 | 10 | 32 | 3-M18x76 | 5.4 | | 80L | 93.1 | 89 | 182 | 222 | 254 | 160 | 5 | 10 | 82 | 3-M18x76 | 6.6 | | 100 | 118.3 | 114 | 219 | 196 | 206 | 118 | 6 | 12 | 30 | 3-M18x76 | 8.5 | | 100L | 118.3 | 114 | 219 | 258 | 268 | 180 | 6 | 12 | 92 | 3-M18x76 | 10.3 |
* JWWA K 132: Polyethylene Powder-Coated Steel Pipe for Water Supply. ** JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.
#The Coupling is designed without pipe stopper in the middle of the body allowing pipe line repair usage.The whole coupling can be slid completely over the end of the pipe to enable a repair pipe piece inserted. |
|
|
