| Bolted Mechanical fittings, Standard® |
|
|
|
 |
| Type: |
Bolted Mechanical fittings, Standard® |
| Name: |

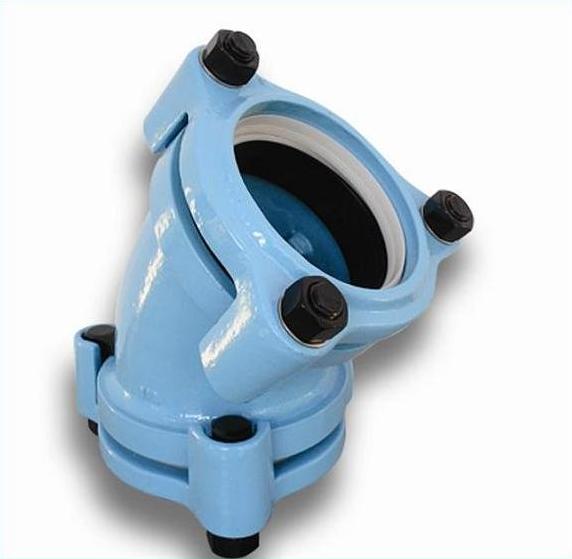

Elbow 45°,22.5°,11.25°, Standard® Series |
|
|
|
|

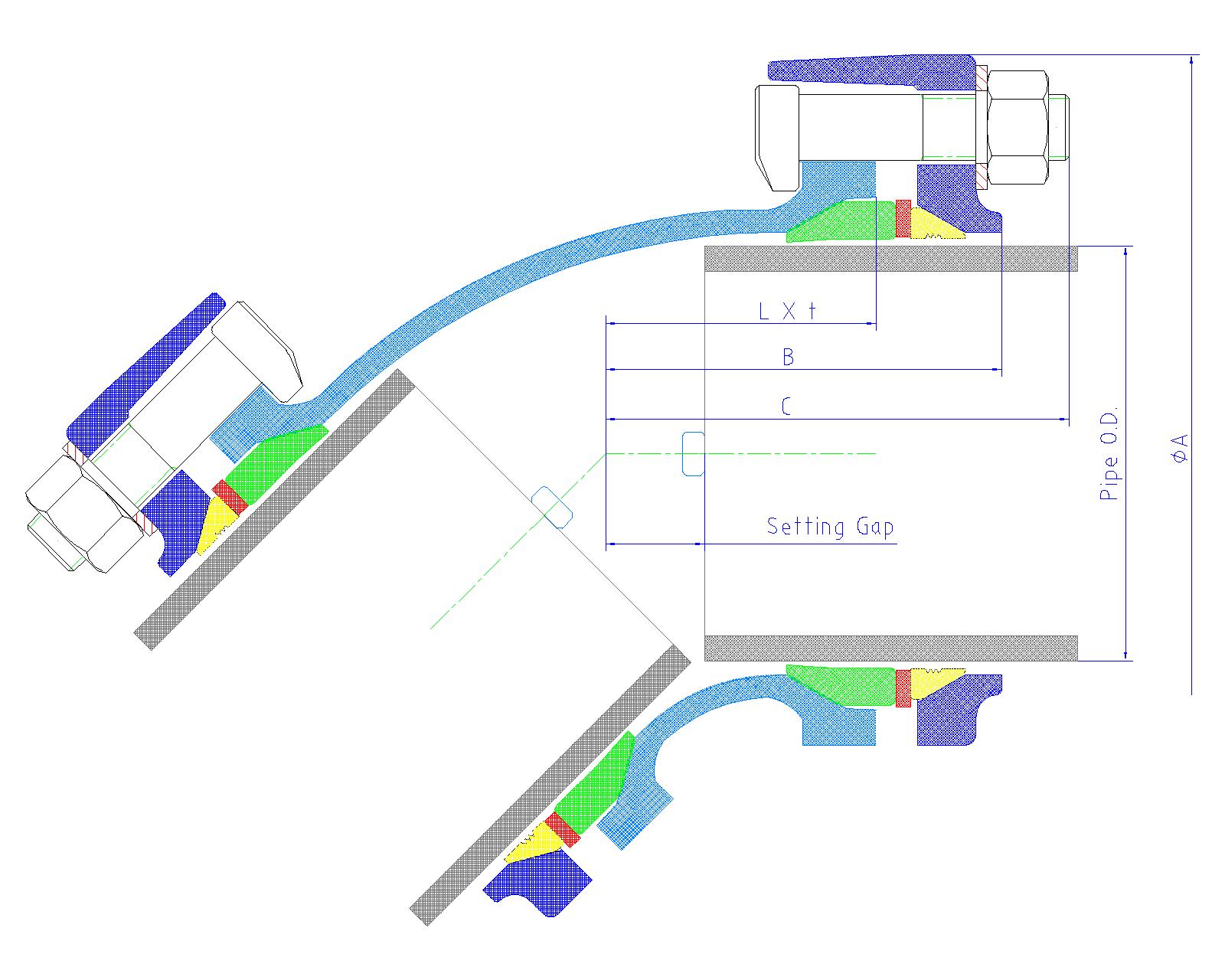

Elbow 45°，22.5°，11.25° Plain End to Plain End  Main Dimensions: Unit:mm
| Size | Pipe O.D. | Coupling Overall | Body | Setting Gap | Bolts | Weight |
| SGP-PD﹡ | HIVP﹡﹡ | A | B | C | L | t | Min | Max | n- M x L | Kg |
| 50LX45° | 64.5 | 60 | 142 | 92 | 109 | 71.5 | 4 | 22 | 47 | 3-M14x60 | 3.5 |
| 65X45° | 80.3 | 76 | 168 | 77 | 100 | 50 | 4.5 | 15 | 20 | 3-M18x76 | 5.1 |
| 80X45° | 93.1 | 89 | 182 | 91 | 107 | 60 | 5 | 20 | 26 | 3-M18x76 | 5.6 |
| 80LX45° | 93.1 | 89 | 182 | 149 | 166 | 118.5 | 5 | 39 | 85 | 3-M18x76 | 7.1 |
| 100X45° | 118.3 | 114 | 219 | 113 | 118 | 74 | 6 | 27 | 35 | 3-M18x76 | 8.7 |
| 100LX45° | 118.3 | 114 | 219 | 170 | 175 | 131 | 6 | 41 | 92 | 3-M18x76 | 11.2 |
| 50LX22.5° | 64.5 | 60 | 142 | 80 | 97 | 60.3 | 4 | 10 | 35 | 3-M14x60 | 4.0 |
| 65LX22.5° | 80.3 | 76 | 168 | 91 | 114 | 64 | 4.5 | 14 | 34 | 3-M18x76 | 4.8 |
| 80X22.5° | 93.1 | 89 | 182 | 95 | 112 | 64.5 | 5 | 25 | 31 | 3-M18x76 | 5.4 |
| 80LX22.5° | 93.1 | 89 | 182 | 141 | 157 | 110 | 5 | 30 | 76 | 3-M18x76 | 7.0 |
| 100X22.5° | 118.3 | 114 | 219 | 104 | 109 | 65 | 6 | 15 | 26 | 3-M18x76 | 8.3 |
| 100LX22.5° | 118.3 | 114 | 219 | 162 | 167 | 123 | 6 | 33 | 84 | 3-M18x76 | 11.5 |
| 80X11.25° | 93.1 | 89 | 182 | 85 | 101 | 54 | 5 | 14 | 20 | 3-M18x76 | 5.8 |
| 80LX11.25° | 93.1 | 89 | 182 | 128 | 144 | 97 | 5 | 17 | 63 | 3-M18x76 | 6.7 |
| 100X11.25° | 118.3 | 114 | 219 | 101 | 106 | 62 | 6 | 12 | 23 | 3-M18x76 | 8.9 |
| 100LX11.25° | 118.3 | 114 | 219 | 183 | 144 | 105 | 6 | 15 | 66 | 3-M18x76 | 10.8 |
* JWWA K 132: Polyethylene Powder-Coated Steel Pipe for Water Supply. ** JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.
|
|
|
