| Junior Mechanical fittings, Standard® |
|
|
|
 |
| Type: |
Junior Mechanical fittings, Standard® |
| Name: |

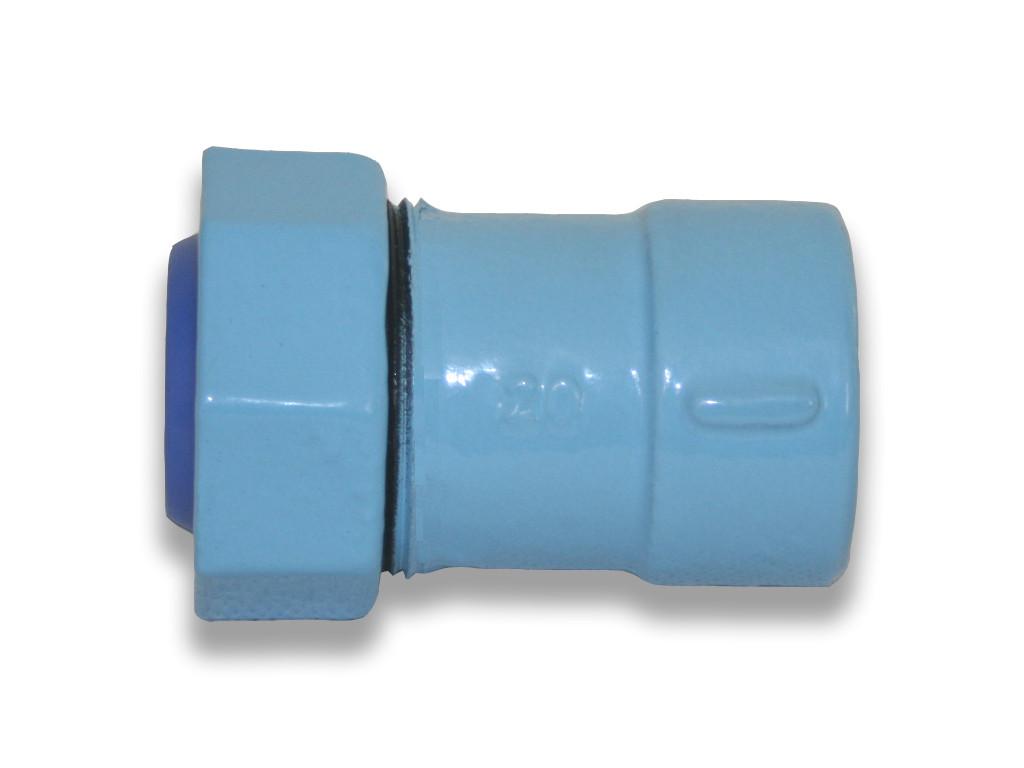

Water Socket, Standard® Series |
|
|
|
|

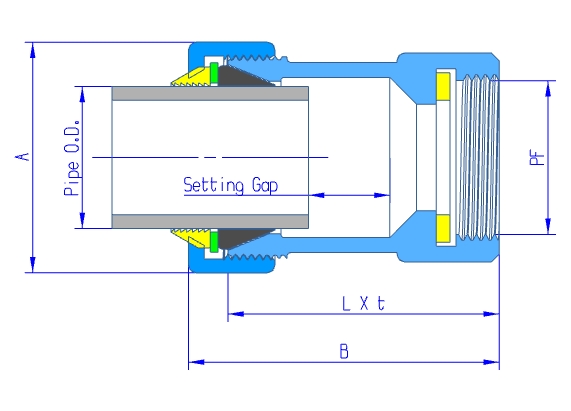

| Water Socket Plain End to Male PF Thread  Main Dimensions: Unit:mm | Size | Pipe O.D. | Coupling Overall | Body | Setting Gap | PF | Weight | | SGP-PD﹡ | HIVP﹡﹡ | A | B | L | t | Min | Max | PF-n | Kg | | 15 | 24.7 | 22.0 | 49 | 68 | 59 | 3 | 3 | 26 | 3/4"-14 | 0.2 | | 20 | 30.2 | 26.0 | 55 | 74 | 64 | 3 | 3 | 27 | 1"-11 | 0.4 | | 25 | 37.0 | 32.0 | 66 | 79 | 69 | 3 | 4 | 28 | 1 1/4"-11 | 0.5 | | 32 | 45.7 | 42.0 | 73 | 78 | 67 | 4 | 5 | 25 | 1 1/2"-11 | 0.7 | | 40 | 52.6 | 48.0 | 80 | 86 | 75 | 4 | 5 | 33 | 2"-11 | 0.9 | | 50 | 64.5 | 60.0 | 96 | 97 | 85 | 5 | 7 | 39 | 2 1/2"-11 | 1.4 |
* JWWA K 132: Polyethylene powder-coated steel pipe for water supply. ** JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.
|
|
|
