Junior Mechanical fittings, Standard®
Coupling, Standard® Series
Coupling, Standard® Series
Type: Junior Mechanical fittings, Standard®
Name: Coupling, Standard® Series

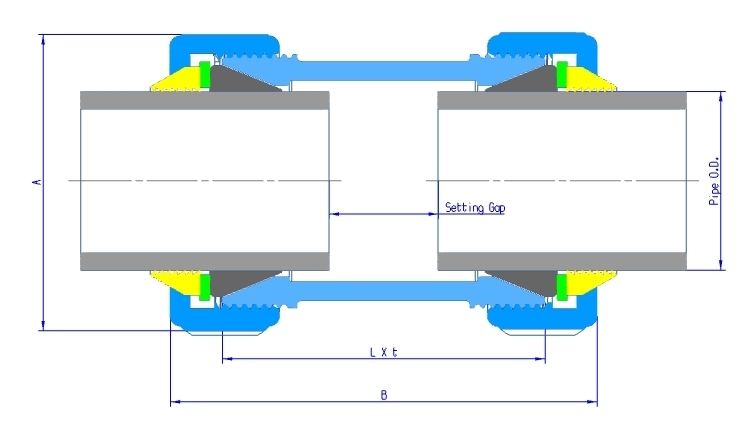

 Coupling                                                                     Plain End to Plain End



Main Dimensions:                                                                                                     Unit:mm

Size Pipe O.D. Coupling Overall  Body Setting Gap Weight
SGP-PD HIVP﹡﹡ A B L  t   Min Max KG
15 24.7 22.0 49 73 55 3 3 12 0.3
20 30.2 26.0 55 79 60 3 3 7 0.4
25 37.0 32.0 66 85 65 4 4 12 0.5
32 45.7 42.0 73 91 70 4 5 21 0.7
40 52.6 48.0 80 97 75 4 5 25 0.9
50 64.5 60.0 96 103 80 5 7 31 1.5

*    JWWA K 132:  Polyethylene powder-coated steel pipe for water supply.

**  JIS K 6742:  Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply  or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.

#The Couplimg is designed without pipe stopper in the middle of the body allowing pipe line repair usage.The whole coupling can be slid completely over the end of the pipe to enable a repair pipe piece inserted.
