| Junior Mechanical fittings, Standard® |
|
|
|
 |
| Type: |
Junior Mechanical fittings, Standard® |
| Name: |

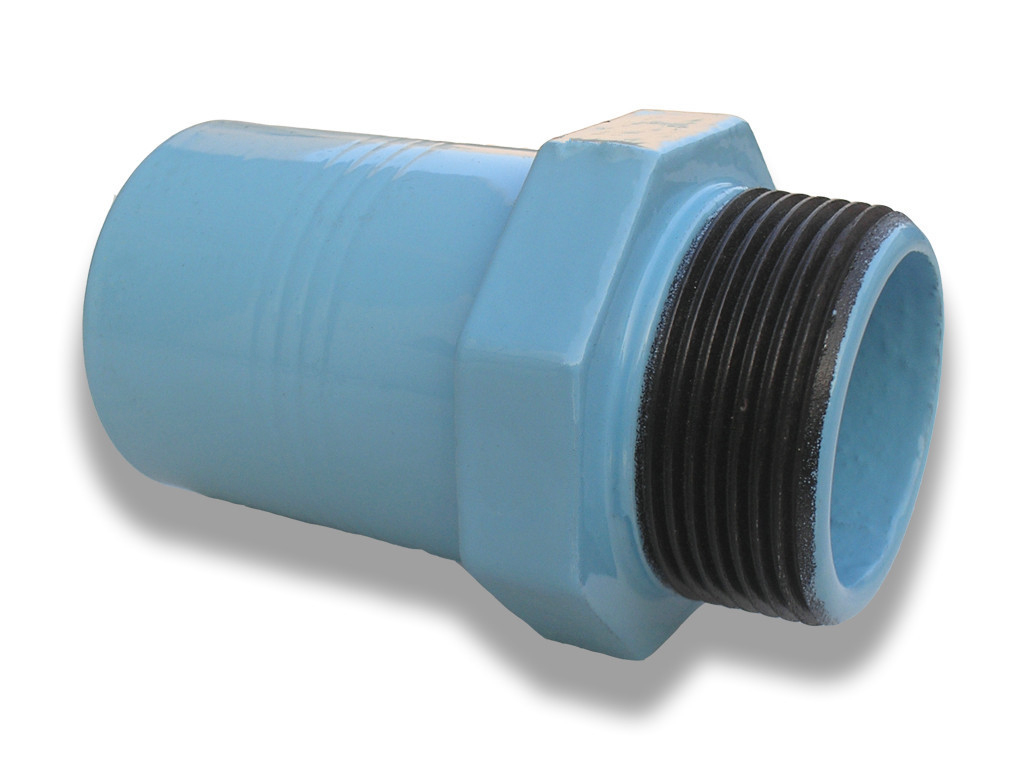

Nipple, Standard® Series |
|
|
|
|

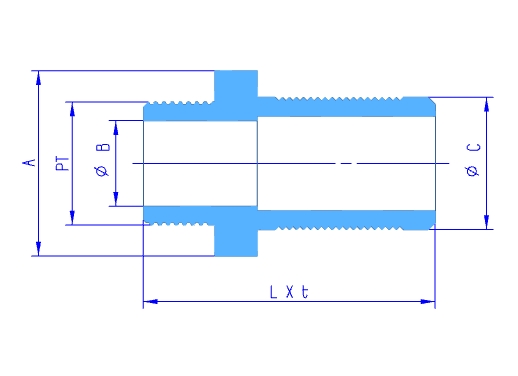

| Nipple Male PT Thread to Hose  Main Dimensions: Unit:mm | Size | Fitting Overall | Body | PT | Weight | | A | B | C | L | t | PT-n | Kg | | 15 | 38 | 13 | 25 | 66 | 6 | 1/2"-14 | 0.2 | | 20 | 45 | 18 | 31 | 74 | 7 | 3/4"-14 | 0.3 | | 25 | 52 | 24 | 37 | 82 | 6 | 1"-11 | 0.3 | | 32 | 57 | 32 | 46 | 90 | 7 | 1 1/4"-11 | 0.5 | | 40 | 65 | 37 | 52 | 97 | 7 | 1 1/2"-11 | 0.6 | | 50 | 79 | 48 | 64 | 106 | 8 | 2"-11 | 1.0 |
* JWWA K 132: Polyethylene powder-coated steel pipe for water supply. ** JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.
|
|
|
