| Junior Mechanical fittings, Standard® |
|
|
|
 |
| Type: |
Junior Mechanical fittings, Standard® |
| Name: |

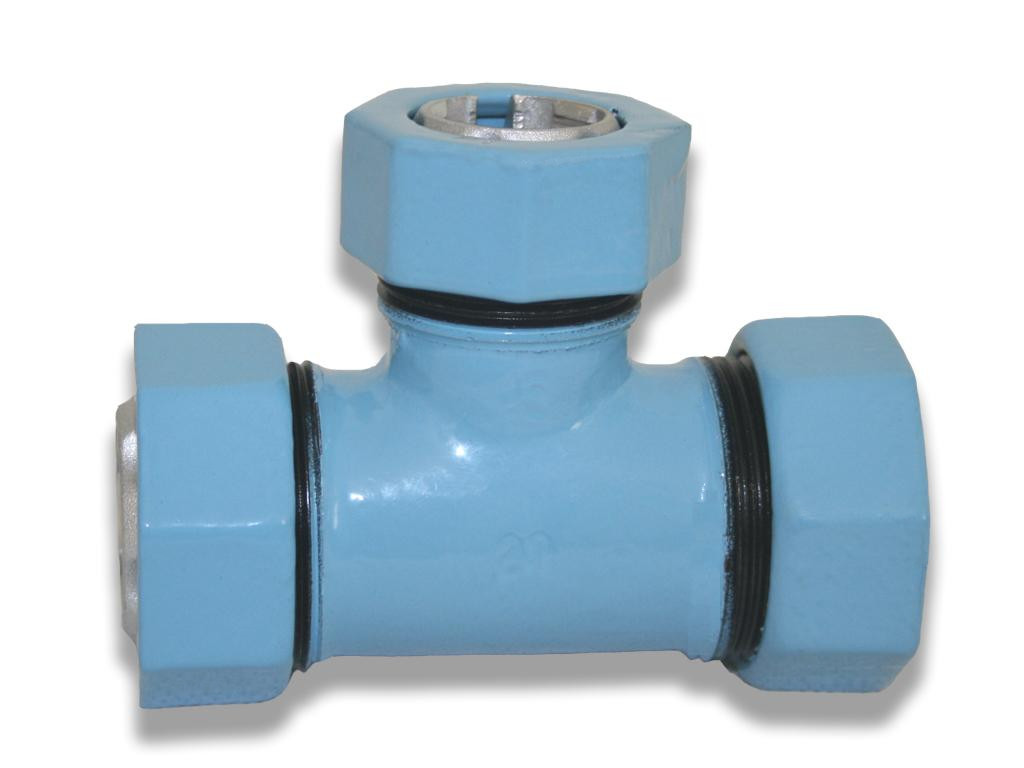

Reducing Tee, Standard® Series |
|
|
|
|

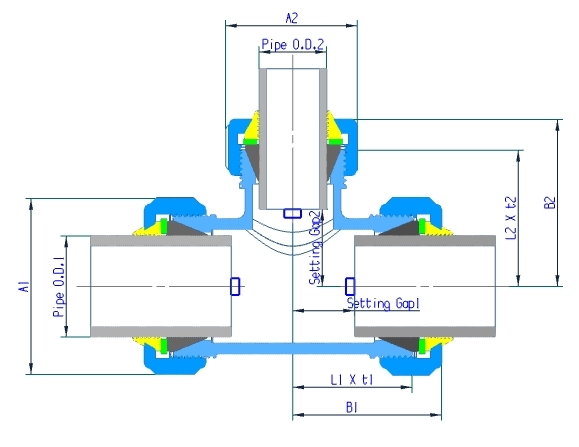

| Reducing Tee Plain End to Plain End  Main Dimensions: Unit:mm | Size | SGP-PD﹡ | HIVP﹡﹡ | Fitting Overall | Body | Setting Gap | Weight | | O.D.1 | O.D.2 | O.D.1 | O.D.2 | A1 | A2 | B1 | B2 | L1 | L2 | t1 | t2 | 1 Min | 2 Min
| Kg | | 20X15 | 30.2 | 24.7 | 26.0 | 22.0 | 55 | 49 | 51 | 37 | 41 | 28 | 3 | 3 | 16 | 19 | 0.6 | | 25X15 | 37.0 | 24.7 | 32.0 | 22.0 | 66 | 49 | 53 | 37 | 43 | 28 | 4 | 3 | 16 | 22 | 0.7 | | 25X20 | 37.0 | 30.2 | 32.0 | 26.0 | 66 | 55 | 56 | 43 | 46 | 34 | 4 | 3 | 19 | 22 | 0.8 | | 32X15 | 45.7 | 24.7 | 42.0 | 22.0 | 73 | 49 | 55 | 37 | 44 | 28 | 4 | 3 | 16 | 27 | 0.9 | | 32X20 | 45.7 | 30.2 | 42.0 | 26.0 | 73 | 55 | 59 | 43 | 48 | 34 | 4 | 3 | 19 | 22 | 1.0 | | 32X25 | 45.7 | 37.0 | 42.0 | 32.0 | 73 | 66 | 64 | 50 | 53 | 40 | 4 | 4 | 22 | 27 | 1.1 | | 40X15 | 52.6 | 24.7 | 48.0 | 22.0 | 80 | 49 | 57 | 37 | 46 | 28 | 4 | 3 | 16 | 30 | 1.2 | | 40X20 | 52.6 | 30.2 | 48.0 | 26.0 | 80 | 55 | 63 | 43 | 52 | 34 | 4 | 3 | 19 | 22 | 1.3 | | 40X25 | 52.6 | 37.0 | 48.0 | 32.0 | 80 | 66 | 66 | 50 | 55 | 40 | 4 | 4 | 22 | 27 | 1.3 | | 40X32 | 52.6 | 45.7 | 48.0 | 42.0 | 80 | 73 | 68 | 59 | 57 | 48 | 4 | 4 | 27 | 30 | 1.4 | | 50X15 | 64.5 | 24.7 | 60.0 | 22.0 | 96 | 49 | 60 | 37 | 48 | 28 | 5 | 3 | 16 | 36 | 1.7 | | 50X20 | 64.5 | 30.2 | 60.0 | 26.0 | 96 | 55 | 63 | 43 | 51 | 34 | 5 | 3 | 19 | 36 | 2.0 | | 50X25 | 64.5 | 37.0 | 60.0 | 32.0 | 96 | 66 | 68 | 50 | 56 | 40 | 5 | 4 | 22 | 36 | 2.0 | | 50X32 | 64.5 | 45.7 | 60.0 | 42.0 | 96 | 73 | 72 | 59 | 60 | 48 | 5 | 4 | 27 | 36 | 2.1 | | 50X40 | 64.5 | 52.6 | 60.0 | 48.0 | 96 | 80 | 76 | 66 | 64 | 55 | 5 | 4 | 30 | 36 | 2.2 |
* JWWA K 132: Polyethylene powder-coated steel pipe for water supply. ** JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.
|
|
|
