| Junior Mechanical fittings, Standard® |
|
|
|
 |
| Type: |
Junior Mechanical fittings, Standard® |
| Name: |

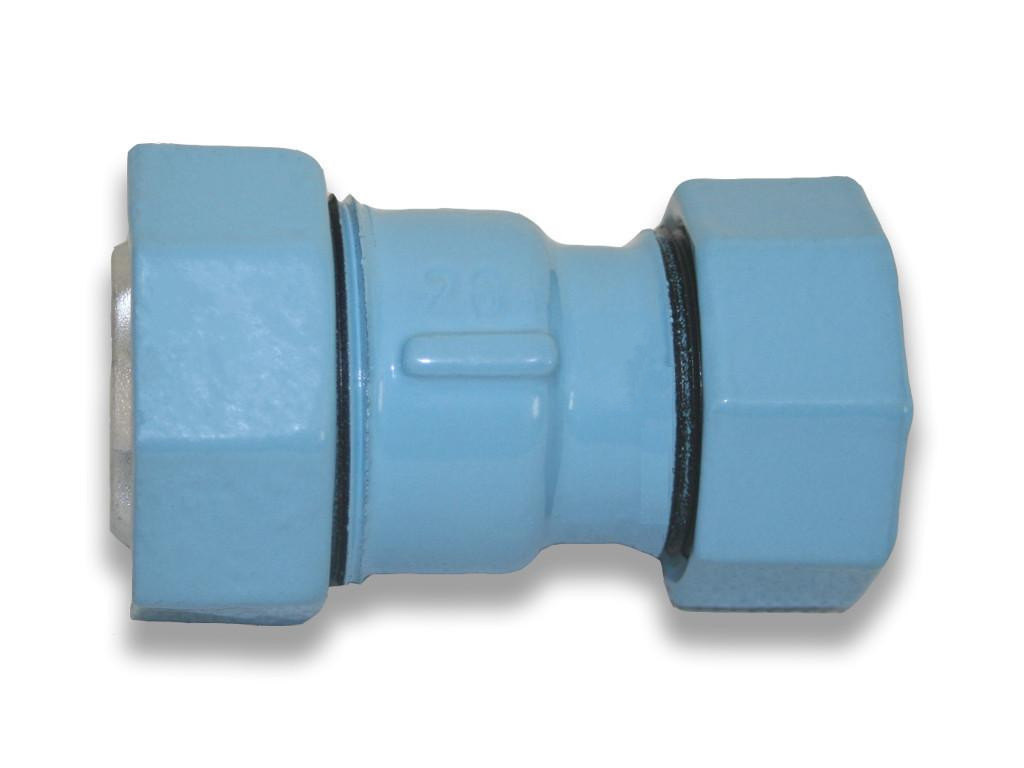

Reducing Coupling, Standard® Series |
|
|
|
|

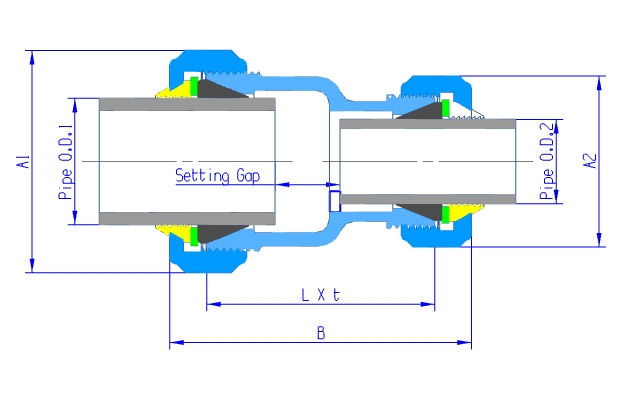

| Reducing Coupling Plain End to Plain End  Main Dimensions: Unit:mm | Size | Pipe O.D.1 | Pipe O.D.2 | Fitting Overall | Body | Setting Gap | Weight | | SGP-PD﹡ | HIVP﹡﹡ | SGP-PD﹡ | HIVP﹡﹡ | A1 | A2 | B | L | t | Min | Max | Kg | | 20X15 | 30.2 | 26.0 | 24.7 | 22.0 | 55 | 49 | 73 | 60 | 3 | 6 | 12 | 0.4 | | 25X15 | 37.0 | 32.0 | 24.7 | 22.0 | 66 | 49 | 78 | 65 | 4 | 7 | 17 | 0.4 | | 25X20 | 37.0 | 32.0 | 30.2 | 26.0 | 66 | 55 | 79 | 65 | 4 | 7 | 12 | 0.5 | | 32X15 | 45.7 | 42.0 | 24.7 | 22.0 | 73 | 49 | 84 | 70 | 4 | 8 | 23 | 0.5 | | 32X20 | 45.7 | 42.0 | 30.2 | 26.0 | 73 | 55 | 84 | 70 | 4 | 8 | 19 | 0.5 | | 32X25 | 45.7 | 42.0 | 37.0 | 32.0 | 73 | 66 | 85 | 70 | 4 | 8 | 19 | 0.5 | | 40X15 | 52.6 | 48.0 | 24.7 | 22.0 | 80 | 49 | 89 | 75 | 4 | 8 | 29 | 0.7 | | 40X20 | 52.6 | 48.0 | 30.2 | 26.0 | 80 | 55 | 90 | 75 | 4 | 8 | 24 | 0.7 | | 40X25 | 52.6 | 48.0 | 37.0 | 32.0 | 80 | 66 | 90 | 75 | 4 | 8 | 24 | 0.8 | | 40X32 | 52.6 | 48.0 | 45.7 | 42.0 | 80 | 73 | 91 | 75 | 4 | 8 | 26 | 0.8 | | 50X15 | 64.5 | 60.0 | 24.7 | 22.0 | 96 | 49 | 95 | 80 | 5 | 10 | 34 | 1.0 | | 50X20 | 64.5 | 60.0 | 30.2 | 26.0 | 96 | 55 | 95 | 80 | 5 | 10 | 29 | 1.1 | | 50X25 | 64.5 | 60.0 | 37.0 | 32.0 | 96 | 66 | 96 | 80 | 5 | 10 | 29 | 1.1 | | 50X32 | 64.5 | 60.0 | 45.7 | 42.0 | 96 | 73 | 96 | 80 | 5 | 10 | 31 | 1.2 | | 50X40 | 64.5 | 60.0 | 52.6 | 48.0 | 96 | 80 | 97 | 80 | 5 | 10 | 31 | 1.2 |
* JWWA K 132: Polyethylene powder-coated steel pipe for water supply.
** JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.
|
|
|
