| Bolted Mechanical fittings, SteelLock® |
|
|
|
 |
| Type: |
Bolted Mechanical fittings, SteelLock® |
| Name: |

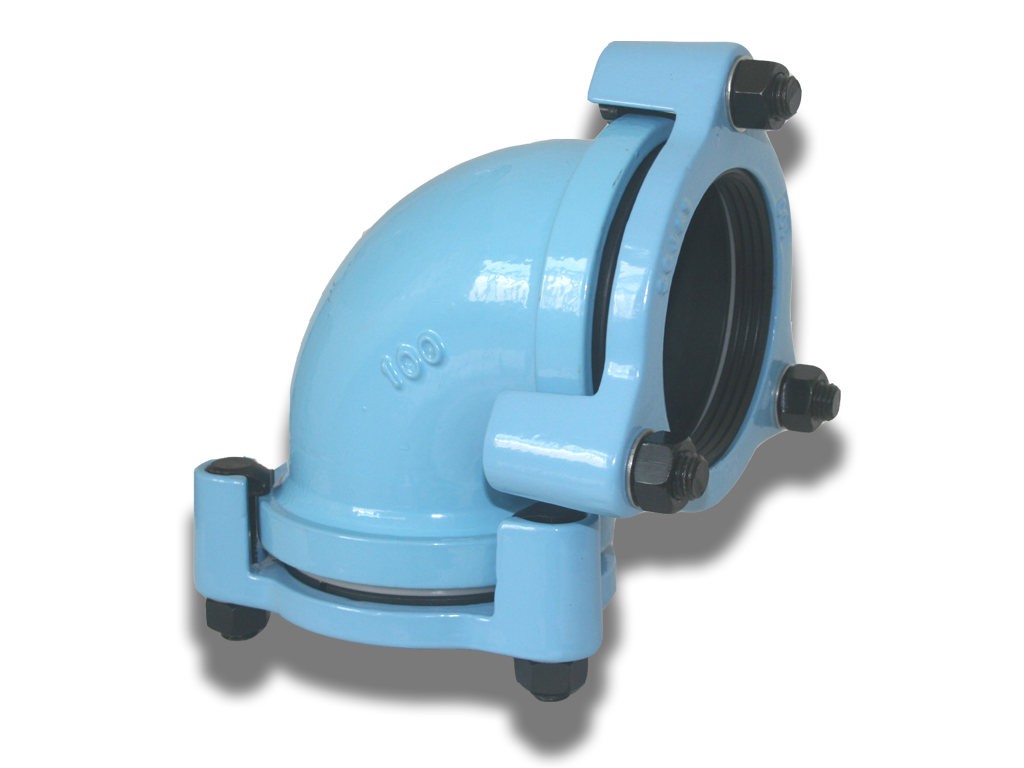

Elbow, SteelLock® Series |
|
|
|
|

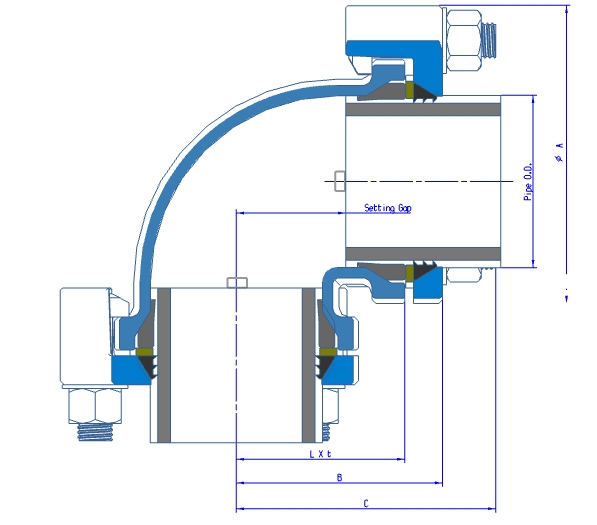

Elbow Plain End to Plain End  Main Dimensions: Unit:mm | Size | Pipe O.D. | Coupling Overall | Body | Setting Gap | Bolts | Weight | | HIVP﹡ | A | B | C | L | t | Min | Max | n- M x L | Kg | | 65 | 76 | 168 | 99 | 125 | 75 | 4.5 | 42 | 45 | 3-M18x76 | 5.1 | | 80 | 89 | 182 | 115 | 134 | 87 | 5 | 48 | 53 | 3-M18x76 | 6.0 | | 80L | 89 | 182 | 186 | 205 | 158 | 5 | 78 | 124 | 3-M18x76 | 7.9 | | 100 | 114 | 219 | 144 | 155 | 111 | 6 | 61 | 72 | 3-M18x76 | 10.1 | | 100L | 114 | 219 | 215 | 226 | 182 | 6 | 92 | 143 | 3-M18x76 | 13.2 |
* JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe. |
|
|
