| Junior Mechanical fittings, Standard® |
|
|
|
 |
| Type: |
Junior Mechanical fittings, Standard® |
| Name: |

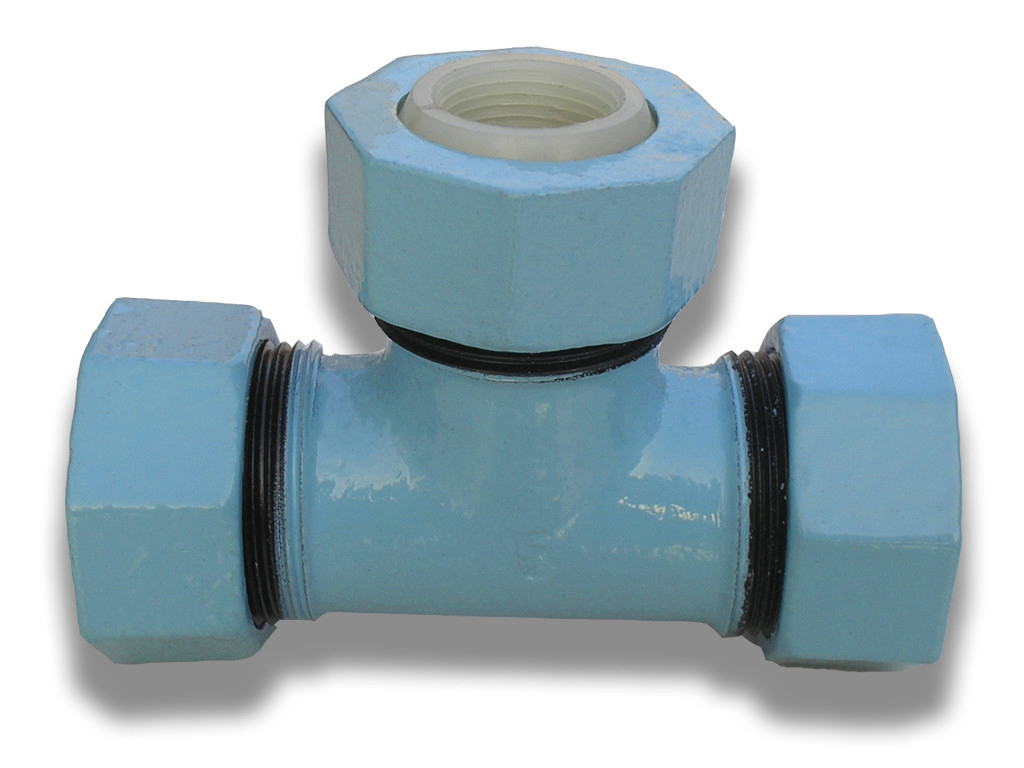

Tee, Standard® Series |
|
|
|
|

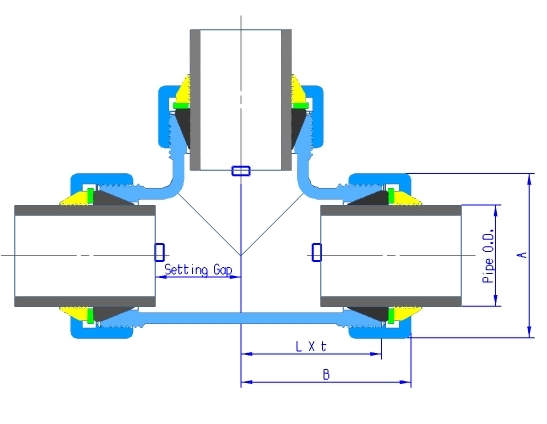

| Tee Plain End to Plain End  Main Dimensions: Unit:mm | Size | Pipe O.D. | Coupling Overall | Body | Setting Gap | Weight | | SGP-PD﹡ | HIVP﹡﹡ | A | B | L | t | Min | Max | KG | | 15 | 24.7 | 22.0 | 49 | 49 | 40 | 3 | 16 | 22 | 0.5 | | 20 | 30.2 | 26.0 | 55 | 54 | 44 | 3 | 19 | 28 | 0.6 | | 25 | 37.0 | 32.0 | 66 | 60 | 50 | 4 | 22 | 32 | 0.9 | | 32 | 45.7 | 42.0 | 73 | 68 | 57 | 4 | 27 | 33 | 1.2 | | 40 | 52.6 | 48.0 | 80 | 74 | 63 | 4 | 30 | 37 | 1.6 | | 50 | 64.5 | 60.0 | 96 | 84 | 72 | 5 | 36 | 42 | 2.6 |
* JWWA K 132: Polyethylene powder-coated steel pipe for water supply. ** JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.
|
|
|
